Intensive care unit, special care unit and hospitalization
Lynix

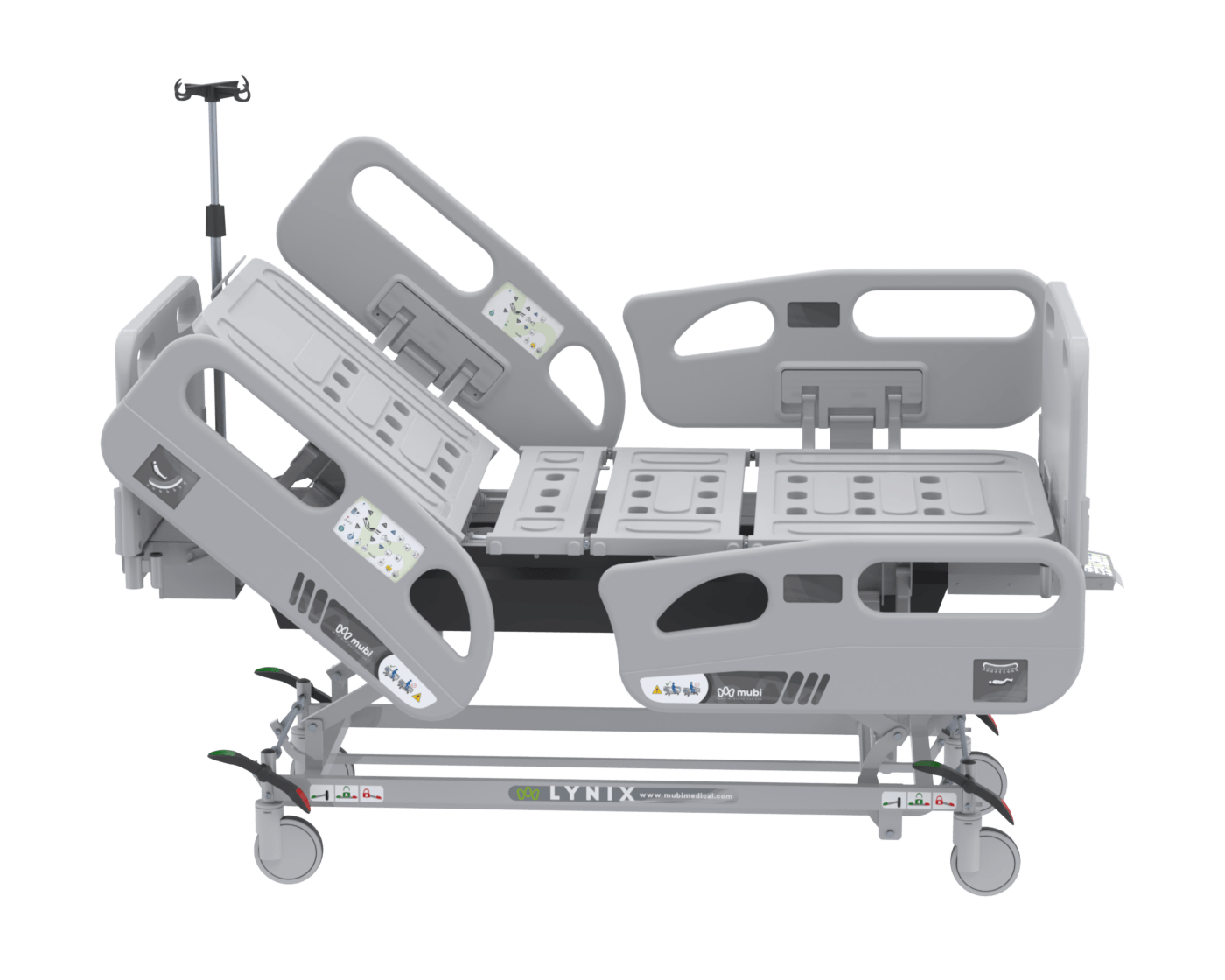

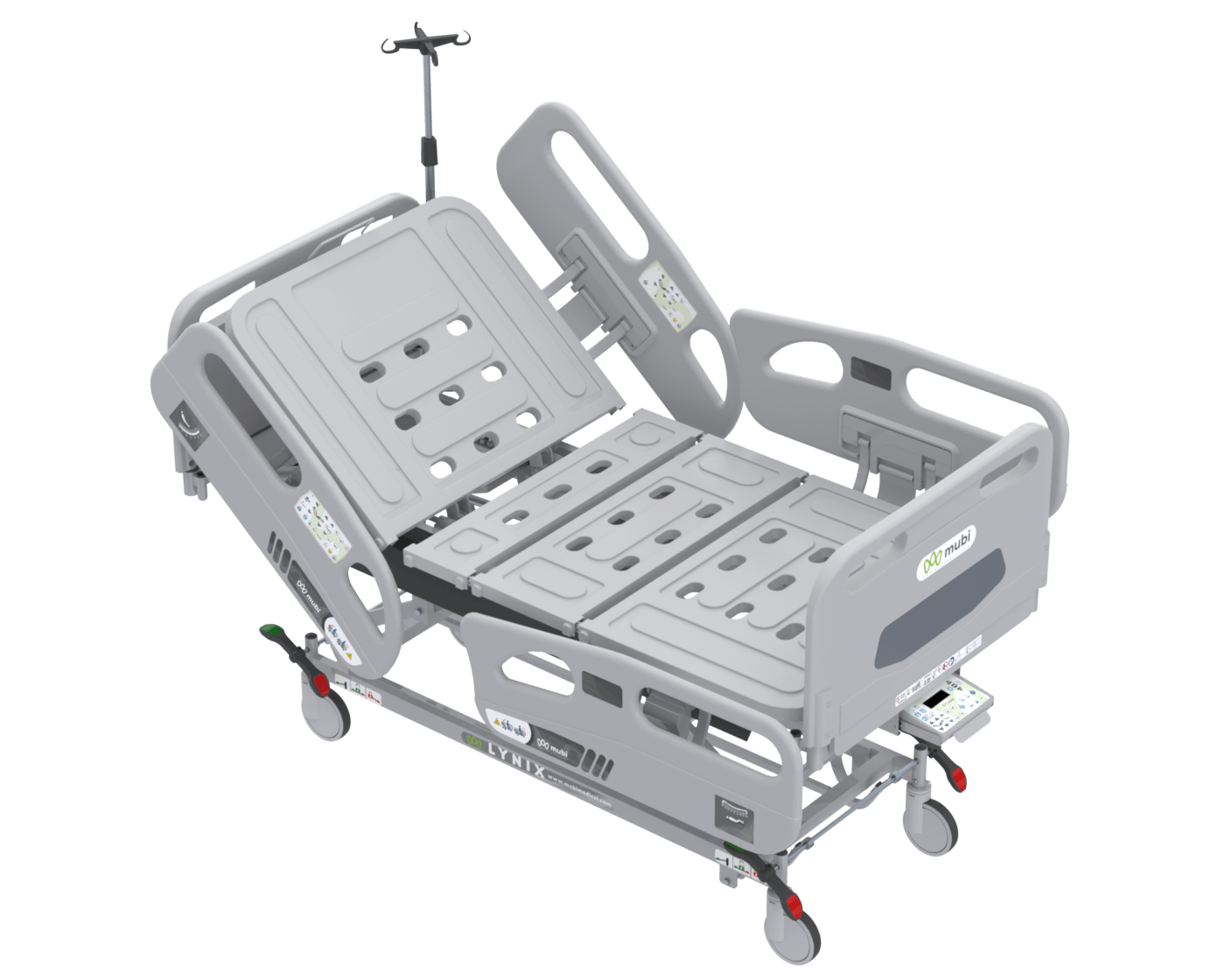

Our Lynix bed is a medical device with technology that adapts to the different needs and service procedures in the Intensive Care Units (ICU). Designed to help accelerate patientrecovery and facilitate caregiver workflow.
Conoce más de ts700 aquí
FEATURES
- Integrated control panel in the side rails with functions including: backrest adjustment, knee flexion, height adjustment, auto-contour, cardiac chair position, tilt and reverse tilt (Trendelenburg and reverse Trendelenburg).
- Digital scale + retractable control located at the foot end, allowing bed movements and patient weight measurement, with menu and selection functions.
- Dimmable under-bed light with visual indicator for patient entry and exit.
- Individual function lock with visual indicator, preventing unintended bed movements.
- Patient surface made of high-impact polymer, 4 sections: one fixed and three movable, removable, and easy to disinfect.
- Mattress retainers at backrest and leg sections.
- Double-section safety side rails, one-hand operation, extended coverage, built-in angle indicator, and pneumatic damping system for safe patient ingress and egress.
- Restraint strap holders, 2 on each side of the bed.
- Drainage bag holders on both sides of the bed.
- Telescopic stainless steel IV pole with 4 service hooks made of polymer. Load capacity: 17.6 lb (8 kg).
- IV pole holders at the 4 corners of the bed.
- Safe load capacity: 485 lb (220 kg).
- Integrated backup battery.
- Maintenance-free polyurethane casters (00 in / 00 mm).
- Corner pedals to activate braking system.
- Electric actuators (maintenance-free), IPX4 protection rating.
- Electric CPR function activated via button on the controls.
- Power supply: 100–240 VAC, 50/60 Hz, 1.5–0.8 A, operating power 160 W.
